Product Details

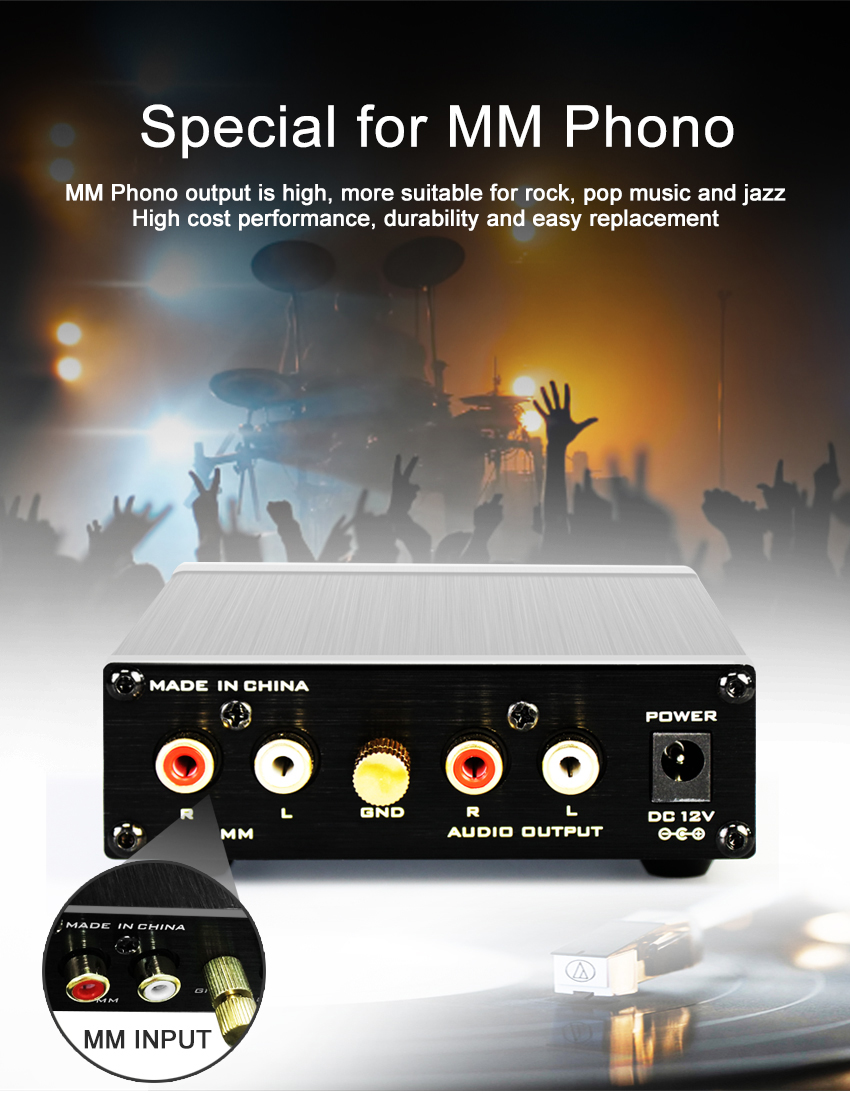

BOX01 Phono Preamplifier

    FUNCTION OF BOX 01 PREAMP The pre-amp is ultra low noise, RIAA certification, easy to set up, gives you a increased vinyl sound quality. Built-in high-quality positive and negative power supply circuit can filter impurities, improve sound performance, reduce noise, and keep low distortion. Output of turntable will be improved from 3mV to 300mV/1V through this phono pre-amp

    Key Features:

    - Low noise and low distortion op amp chip NJM2068

    - Aluminum alloy metal oxidation wire drawing shell

    - Stable high performance black immersion gold PCB board

    - Positive and negative power line effectively filter remove noise, lower noise and improve sound quality

    - High density metal film resistance, maximum improve sound quality

    - Compact phonograph preamp is suitable for desk, table, bookshelf


    Model: BOX 01

    Product Name: Phono Preamp

    Interface Input: PHONO(MM)

    Chipset: NJM2068

    Level Out: 300mVrms

    Resistance: 47KΩ/100pF

    Interface Output: RCA

    THD: 0.008%

    SNR: -80dB

    Power Supply: DC 12V 1A




  • Parameters

    FUNCTION OF BOX 01 PREAMP The pre-amp is ultra low noise, RIAA certification, easy to set up, gives you a increased vinyl sound quality. Built-in high-quality positive and negative power supply circuit can filter impurities, improve sound performance, reduce noise, and keep low distortion. Output of turntable will be improved from 3mV to 300mV/1V through this phono pre-amp

    Key Features:

    - Low noise and low distortion op amp chip NJM2068

    - Aluminum alloy metal oxidation wire drawing shell

    - Stable high performance black immersion gold PCB board

    - Positive and negative power line effectively filter remove noise, lower noise and improve sound quality

    - High density metal film resistance, maximum improve sound quality

    - Compact phonograph preamp is suitable for desk, table, bookshelf


    Model: BOX 01

    Product Name: Phono Preamp

    Interface Input: PHONO(MM)

    Chipset: NJM2068

    Level Out: 300mVrms

    Resistance: 47KΩ/100pF

    Interface Output: RCA

    THD: 0.008%

    SNR: -80dB

    Power Supply: DC 12V 1A
