Product Details

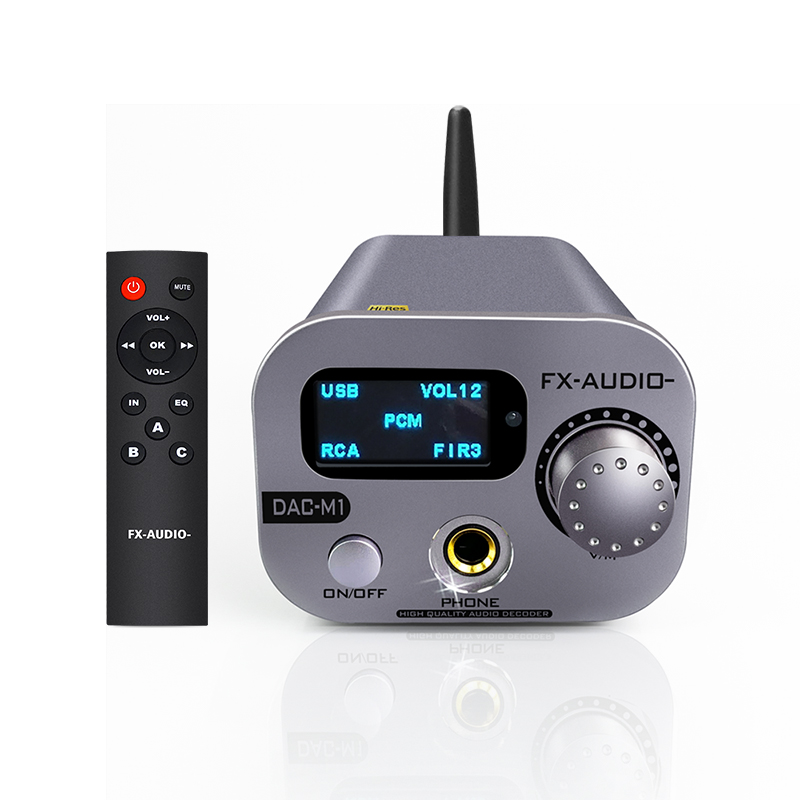

DAC-M1

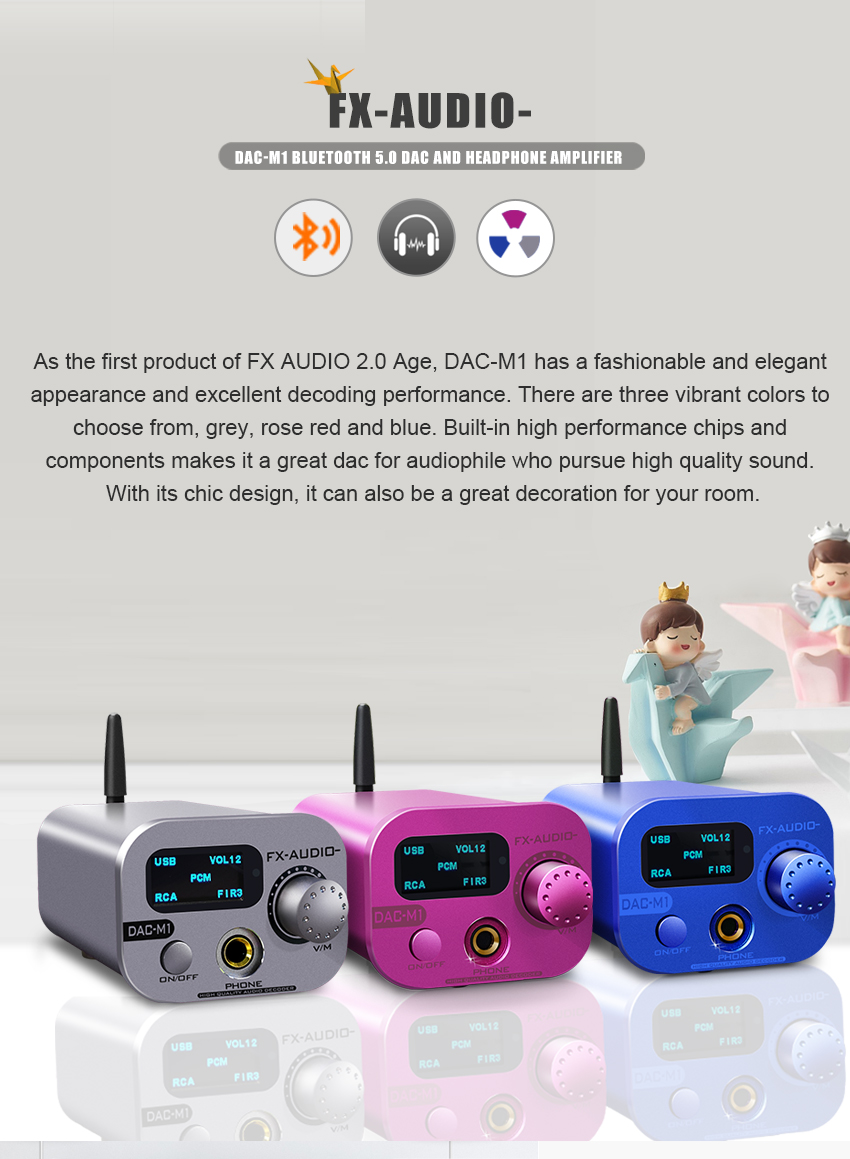

    As the first product of FX AUDIO 2.0 Age, DAC-M1 has a fashionable and elegant appearance and excellent decoding performance. There are three vibrant colors to choose from, grey, rose red and blue. Built-in high performance chips and components makes it a great dac for audiophile who pursue high quality sound. With its chic design, it can also be a great decoration for your room.

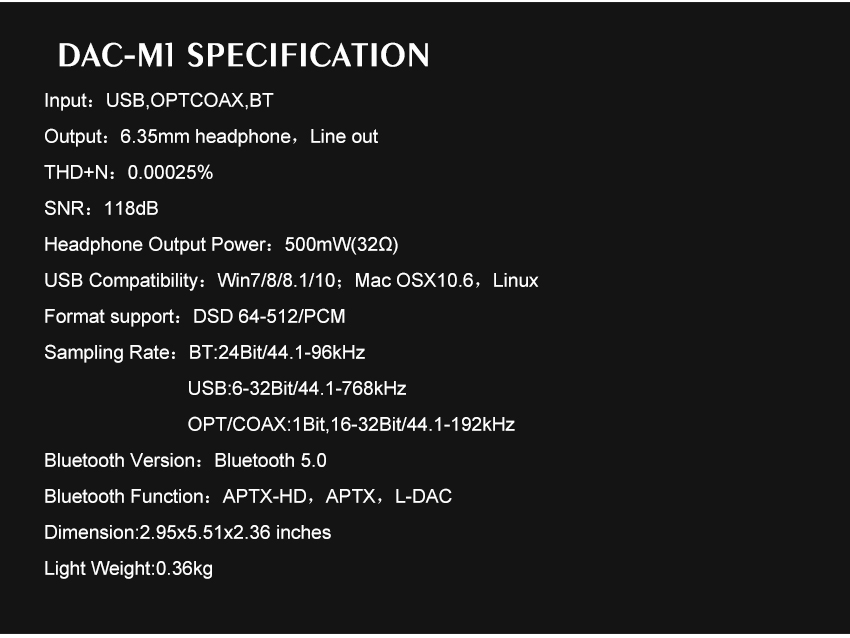

    Technical Specs:

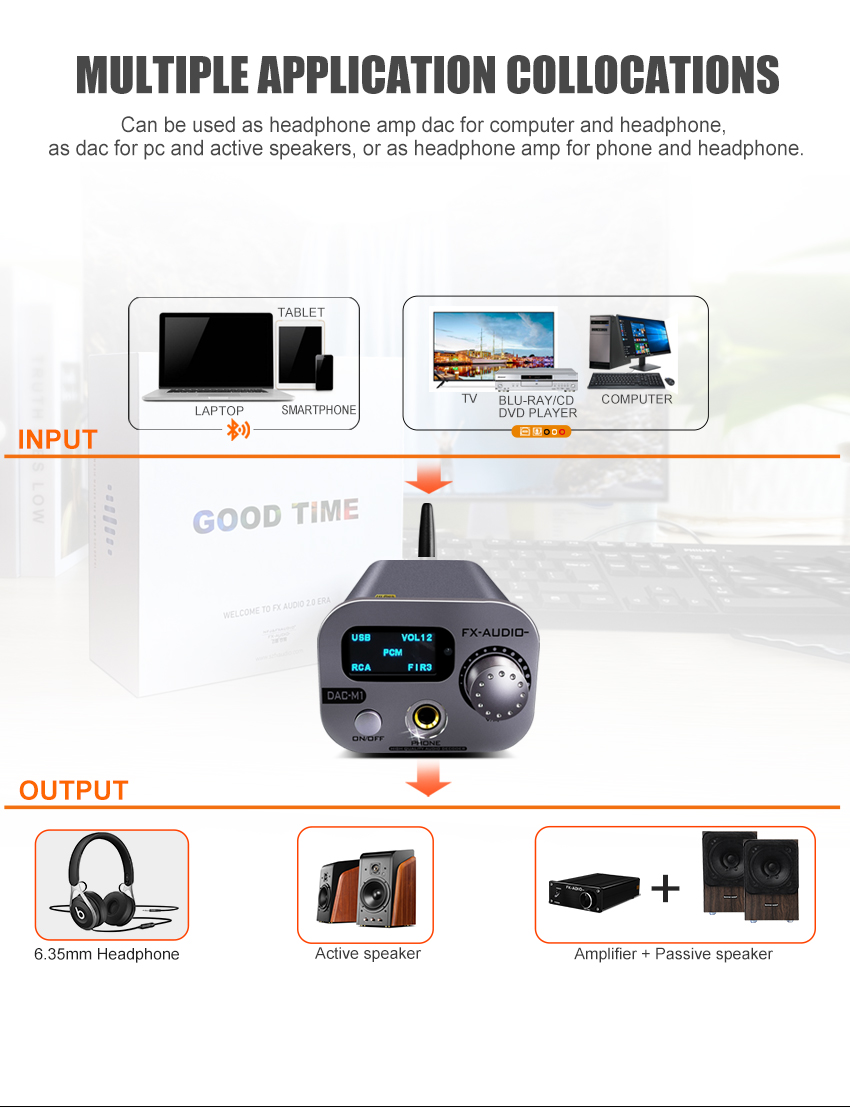

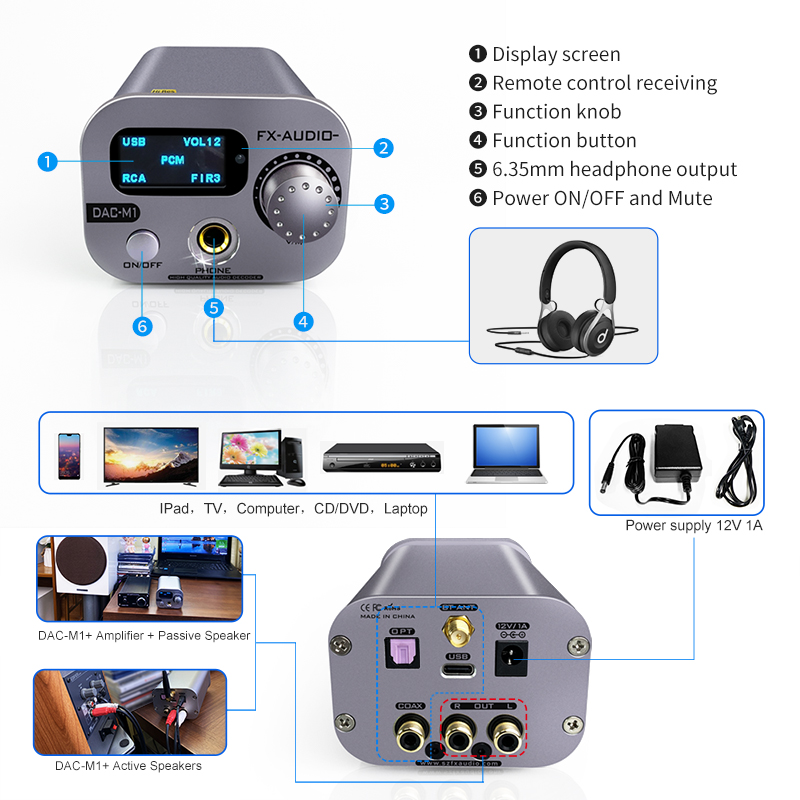

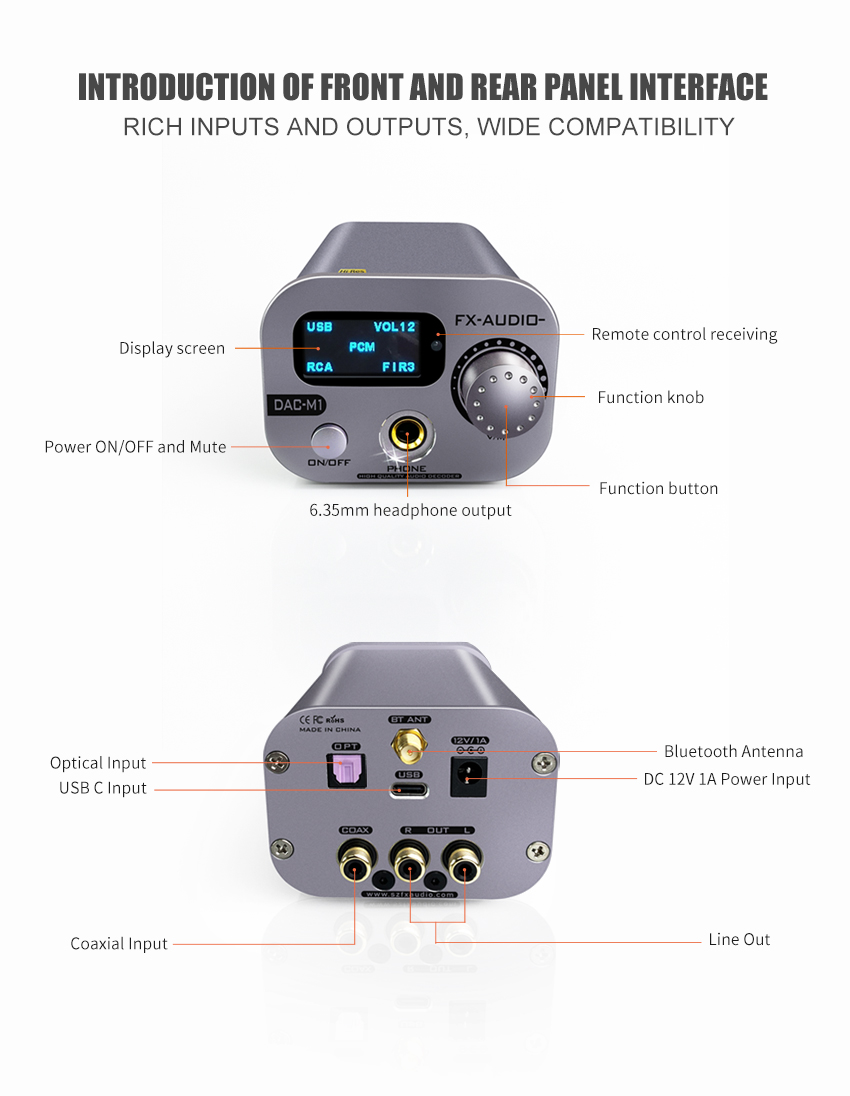

    Input: USB, Optical, Coaxial, Bluetooth

    Output: Line Out, 6.35mm Headphone Output

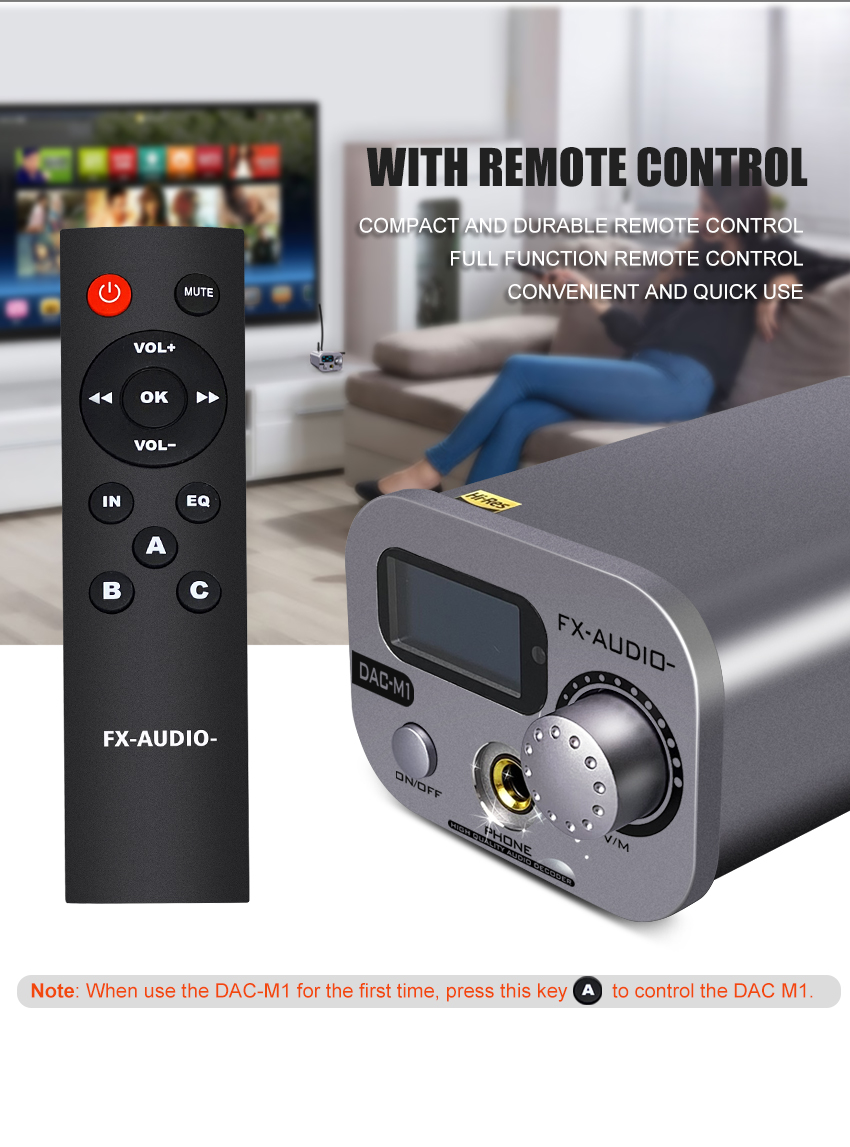

    OLED display and remote control

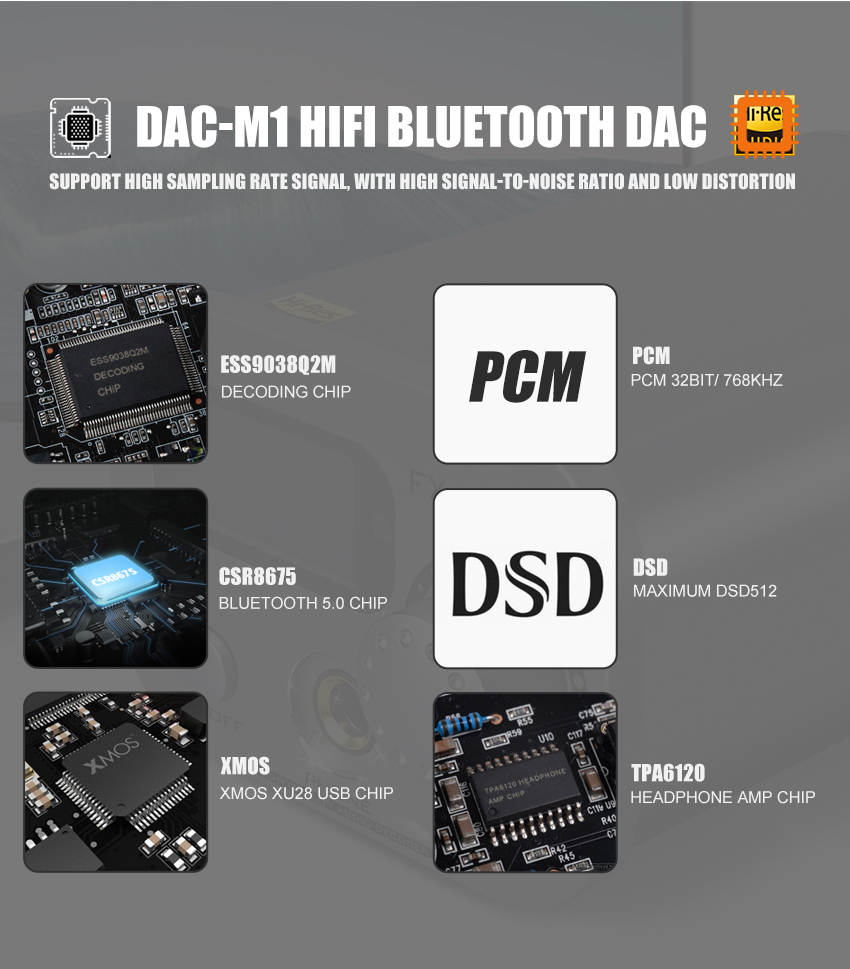

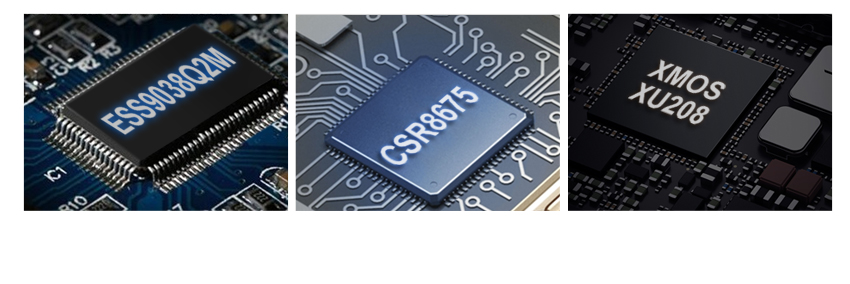

    ESS9038Q2M + XMOS XU208 +CSR8675

    Headphone amp and DAC function

    7 types of filter modes

    Aluminum alloy anodized housing

    THD+N: 0.00025%

    SNR: 118db

    USB: Asynchronous Transmission Mode

    Power Consumption: 3.5W

    Standby Power Consumption: 0.25W

    USB Compatibility: Win7/ 8/ 8.1/ 10, Mac OS X 10.6 or above, Linux

    Sampling Rate: USB (1Bit, 16 ~ 32Bit / PCM:44.1~768kHz, DSD:2.8224~22.5792MHz)

    OPT/COA (1Bit,16~32Bit /PCM:44.1~192KHz ; DSD:DSD64(DoP))

    BT (24Bit/PCM:44.1~96kHz)

    Headphone Output Power: 500mW (32 Ω), 340mW (64 Ω), 180mW (150 Ω), 96mW (300 Ω)




  • Parameters

    As the first product of FX AUDIO 2.0 Age, DAC-M1 has a fashionable and elegant appearance and excellent decoding performance. There are three vibrant colors to choose from, grey, rose red and blue. Built-in high performance chips and components makes it a great dac for audiophile who pursue high quality sound. With its chic design, it can also be a great decoration for your room.


    Technical Specs:

    Input: USB, Optical, Coaxial, Bluetooth

    Output: Line Out, 6.35mm Headphone Output

    OLED display and remote control

    ESS9038Q2M + XMOS XU208 +CSR8675

    Headphone amp and DAC function

    7 types of filter modes

    Aluminum alloy anodized housing

    THD+N: 0.00025%

    SNR: 118db

    USB: Asynchronous Transmission Mode

    Power Consumption: 3.5W

    Standby Power Consumption: 0.25W

    USB Compatibility: Win7/ 8/ 8.1/ 10, Mac OS X 10.6 or above, Linux

    Sampling Rate: USB (1Bit, 16 ~ 32Bit / PCM:44.1~768kHz, DSD:2.8224~22.5792MHz)

    OPT/COA (1Bit,16~32Bit /PCM:44.1~192KHz ; DSD:DSD64(DoP))

    BT (24Bit/PCM:44.1~96kHz)

    Headphone Output Power: 500mW (32 Ω), 340mW (64 Ω), 180mW (150 Ω), 96mW (300 Ω)
