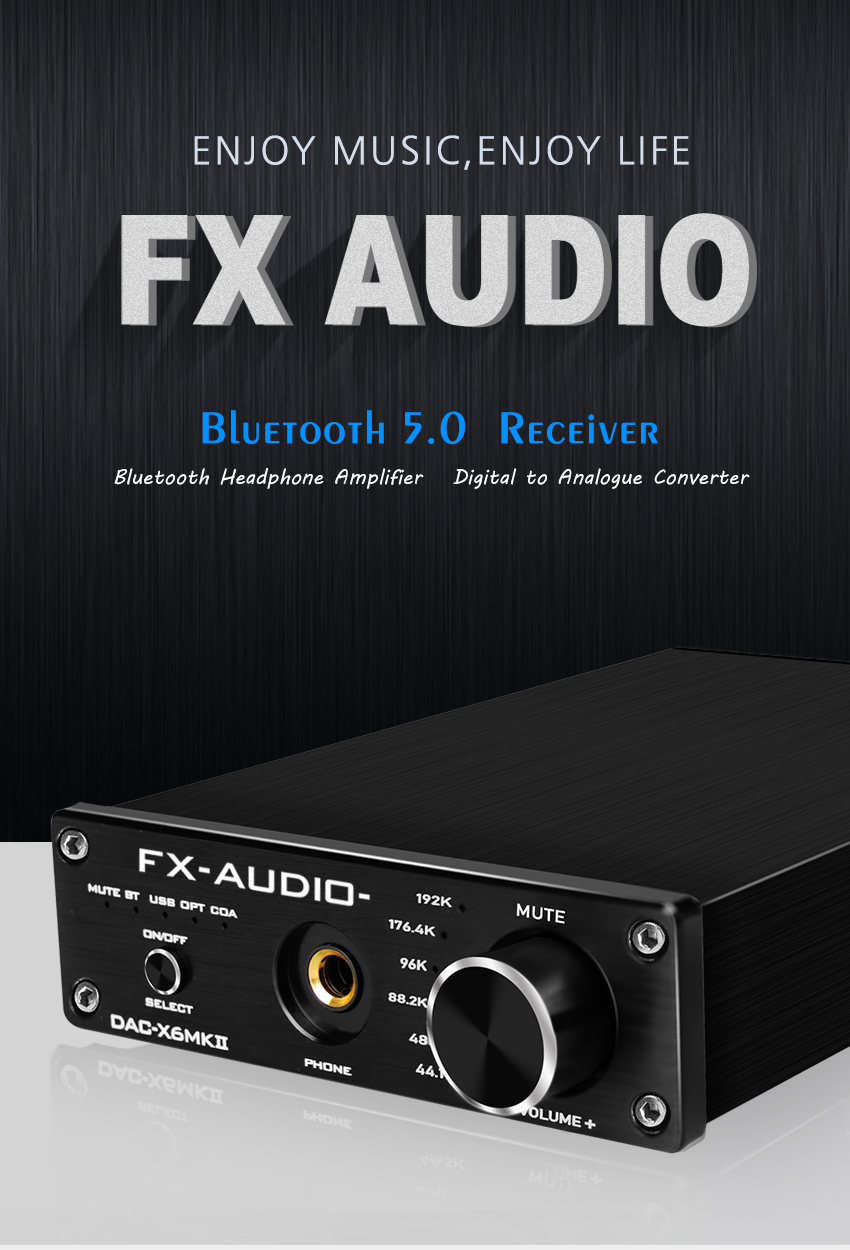

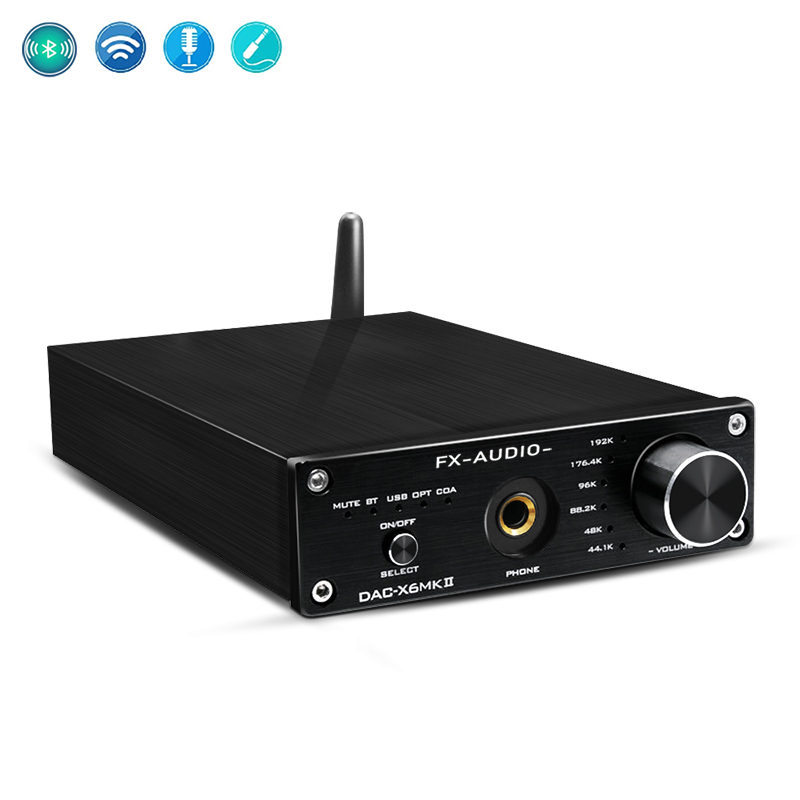

DAC-X6MKII
- Support digital audio conversion to analog audio signals

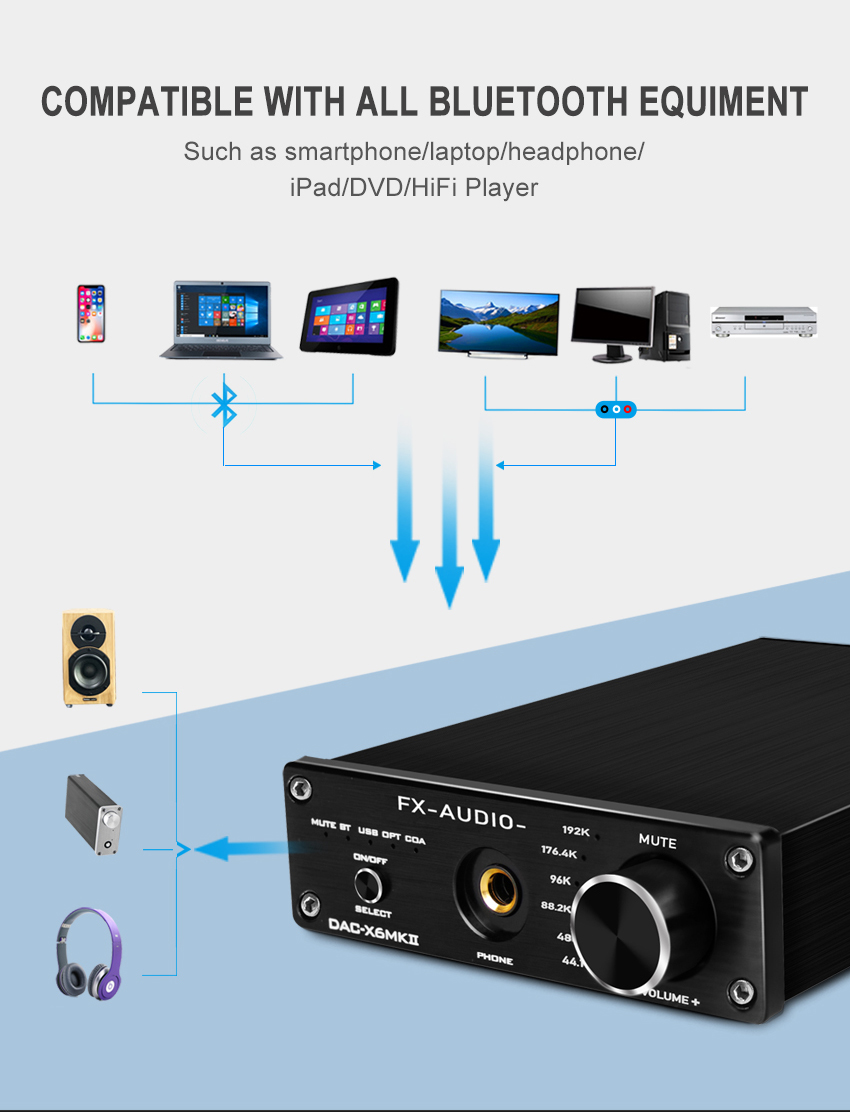

- 4 Optional Audio Inputs: Optical, Coaxial, PC-USB, Bluetooth
- High performance chipset OCC3008 (Bluetooth 5.0) and decoding chip ESS9018

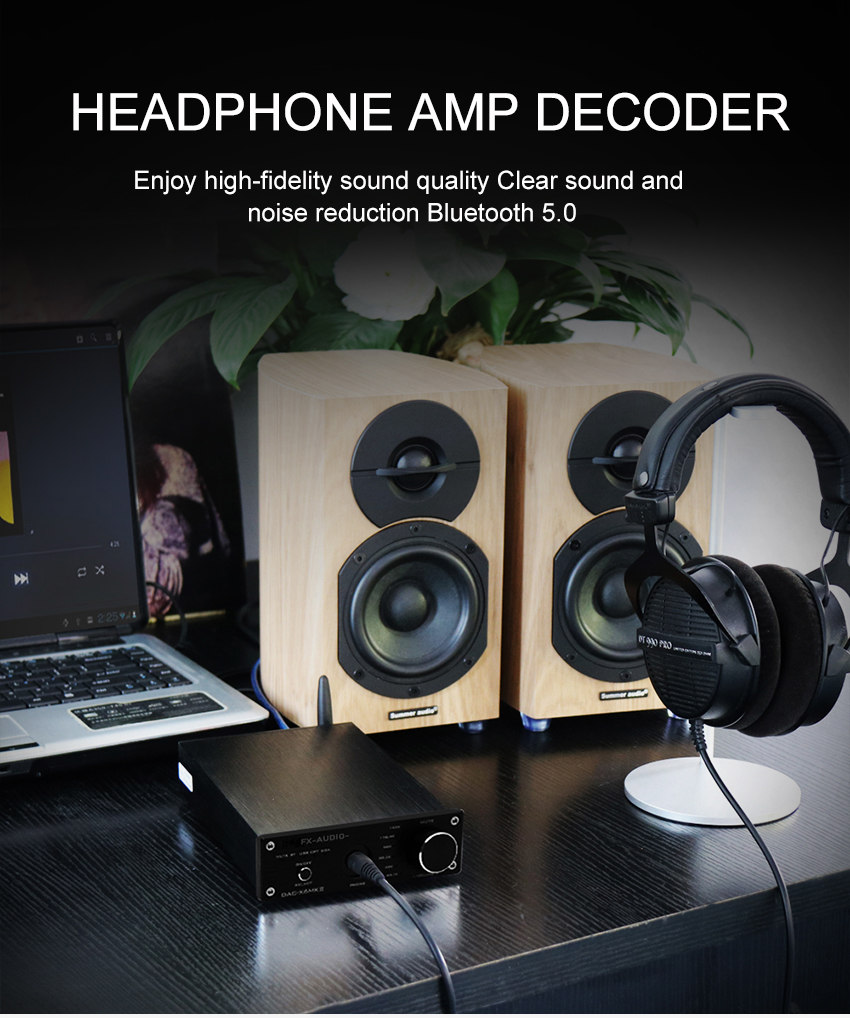

- Connect 6.35mm jack headphone amplifier and RCA speaker simultaneously

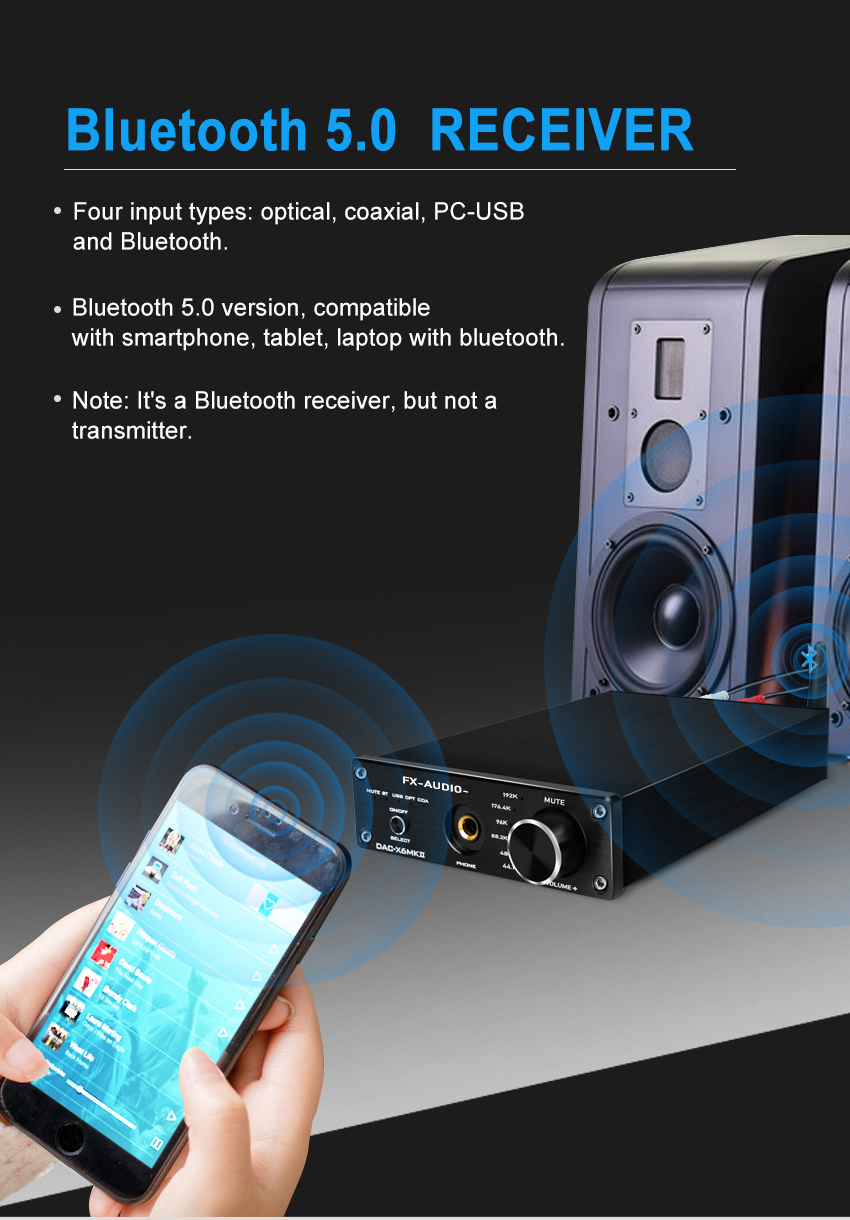

- Connect Bluetooth audio input (phone, tablet, laptop, computer) via Bluetooth

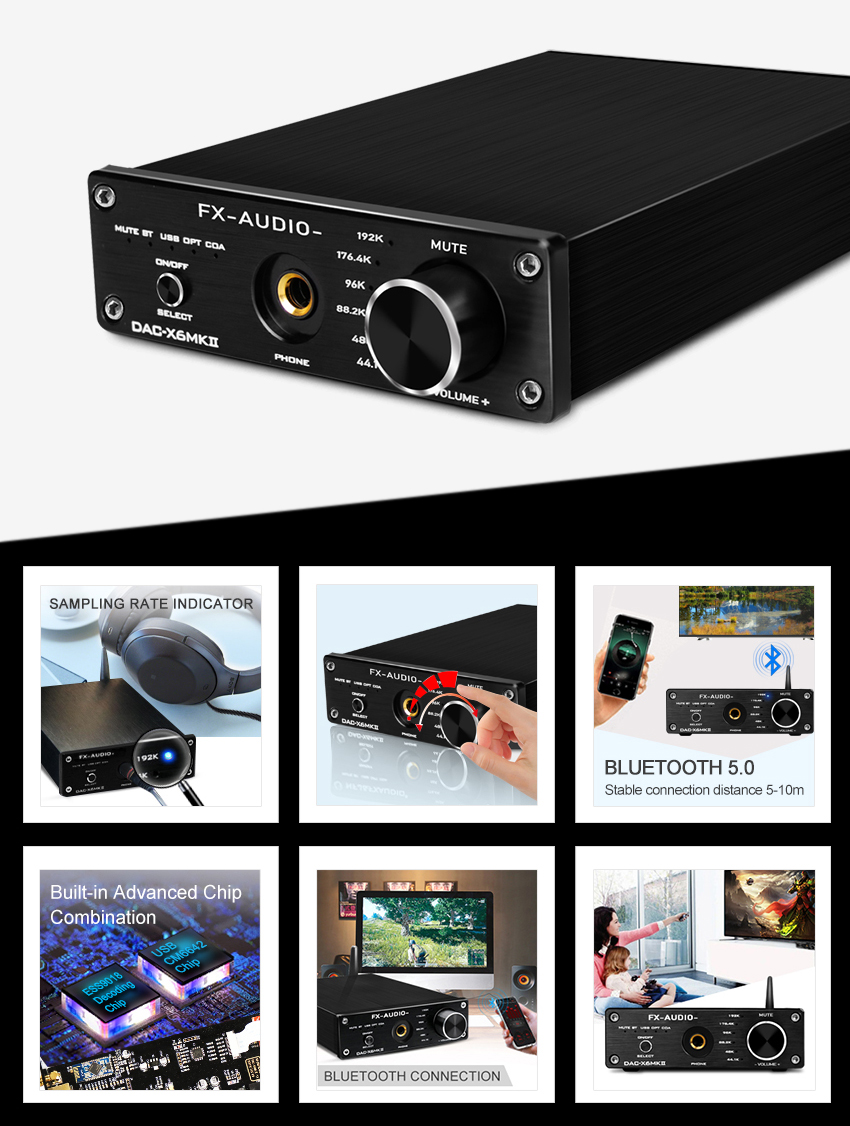

- Volume control knob can control the volume of headphone and speaker
- Aluminum alloy case, black immersion gold, gold-plated interface

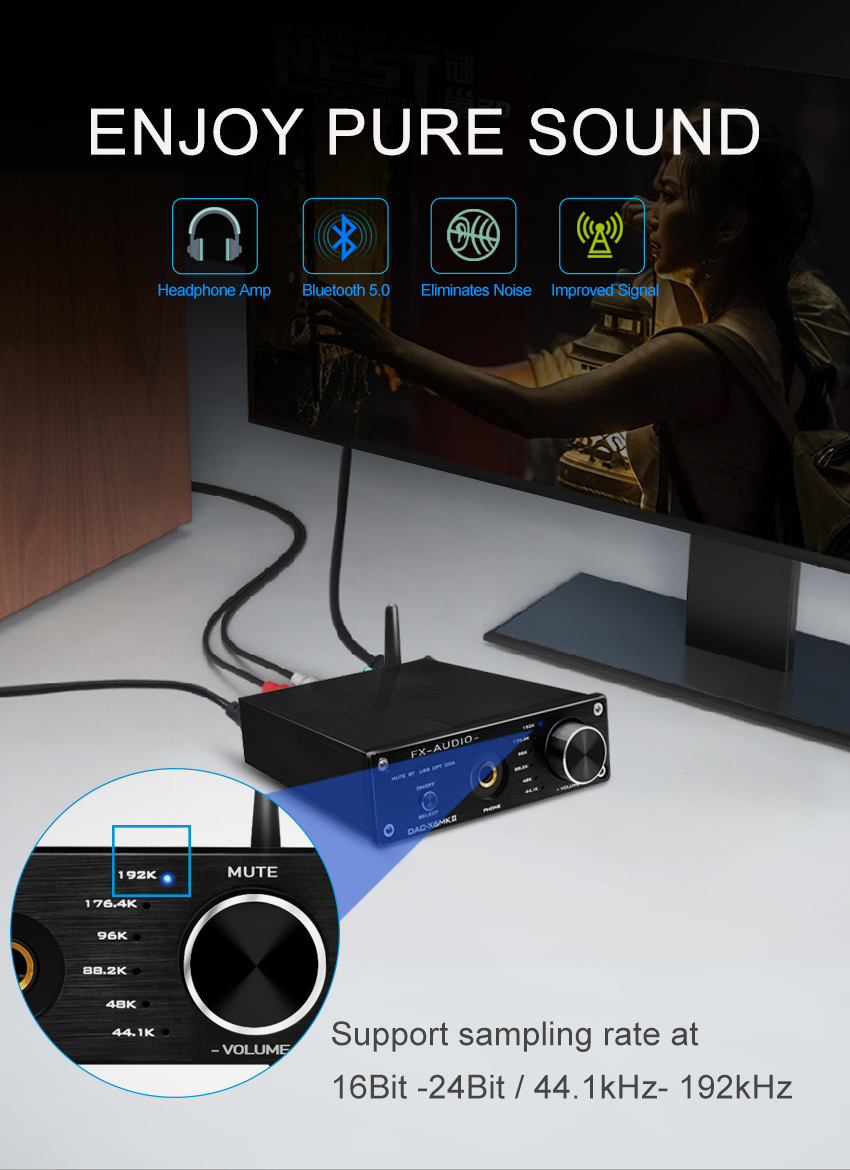

- Support sampling rate at 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 24Bit
- Provides Electromagnetic-noise-free transmission and pure sound

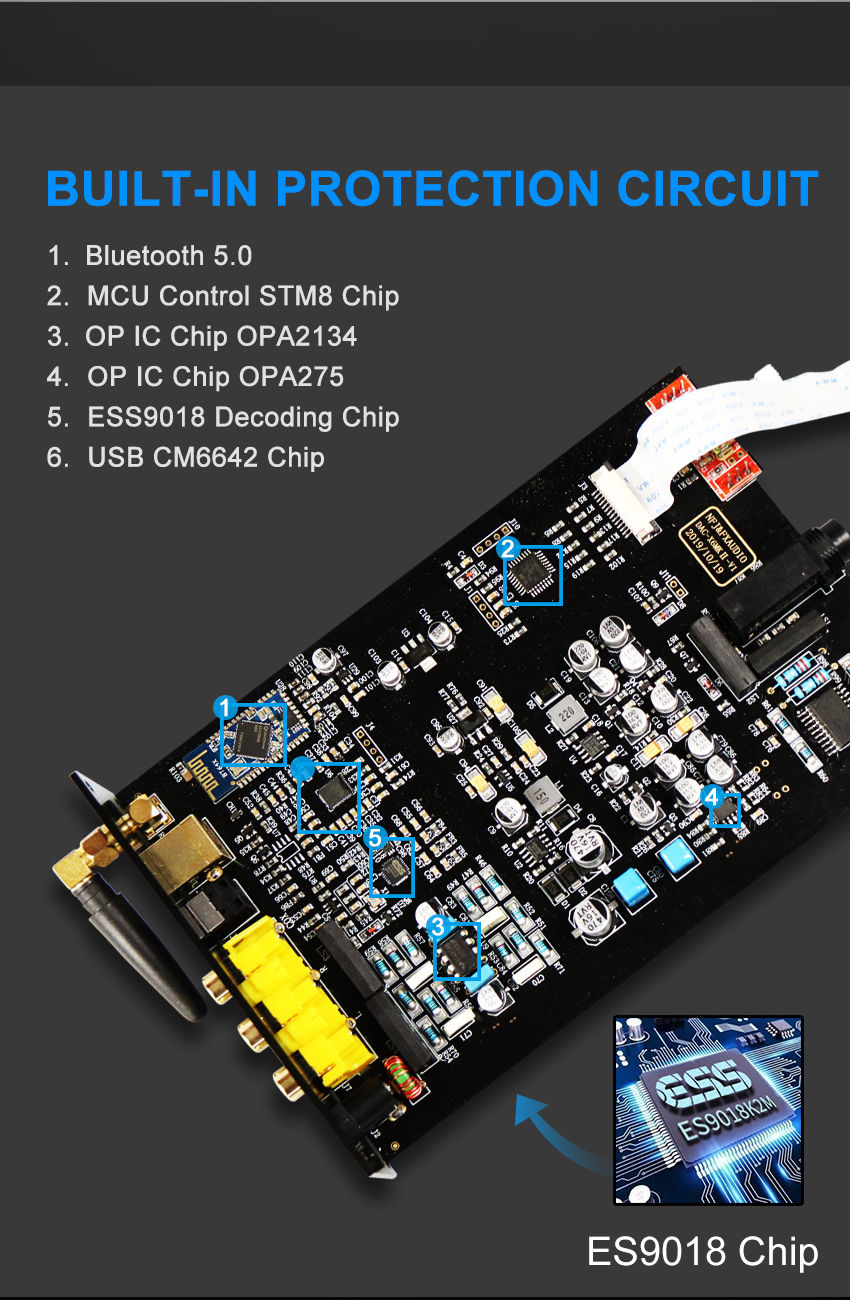

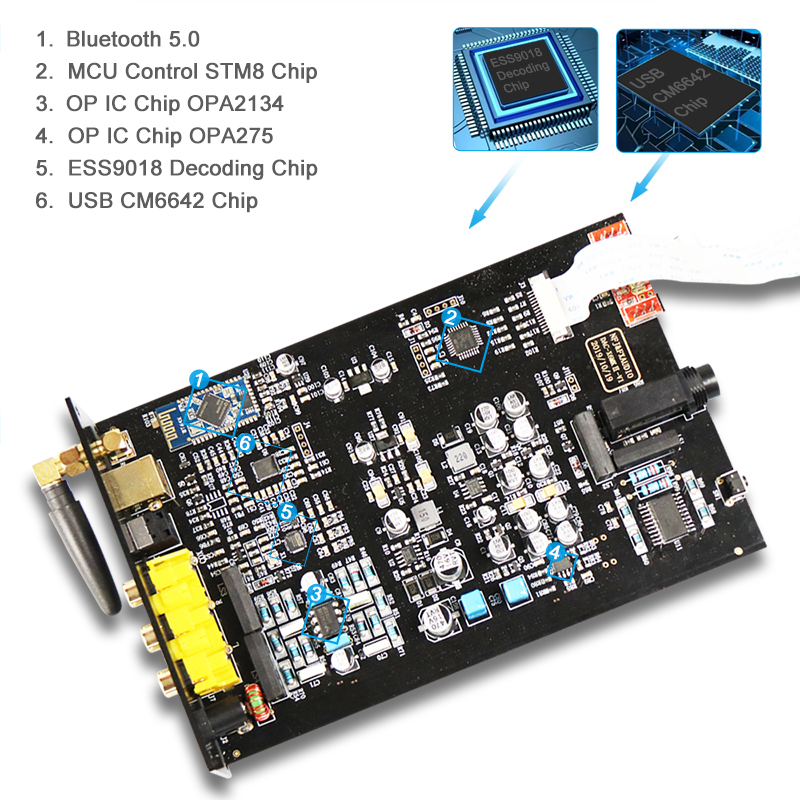

Chipset: STM8+CM6642+ESS9018+TPA6120+OP275+OCC3008(Bluetooth 5.0)
Sampling Rate: 24Bit/ 192kHz
RCA RMS Level: 2Vrms
Headphone Power Output: 940mW@16Ω, 900mW@32Ω, 700mW@64Ω, 450mW@120Ω
Headphone THD: 0.006%
Headphone SNR: 112dB
Headphone Frequency Response: +0 / -0.5dB(20Hz-20kHz)

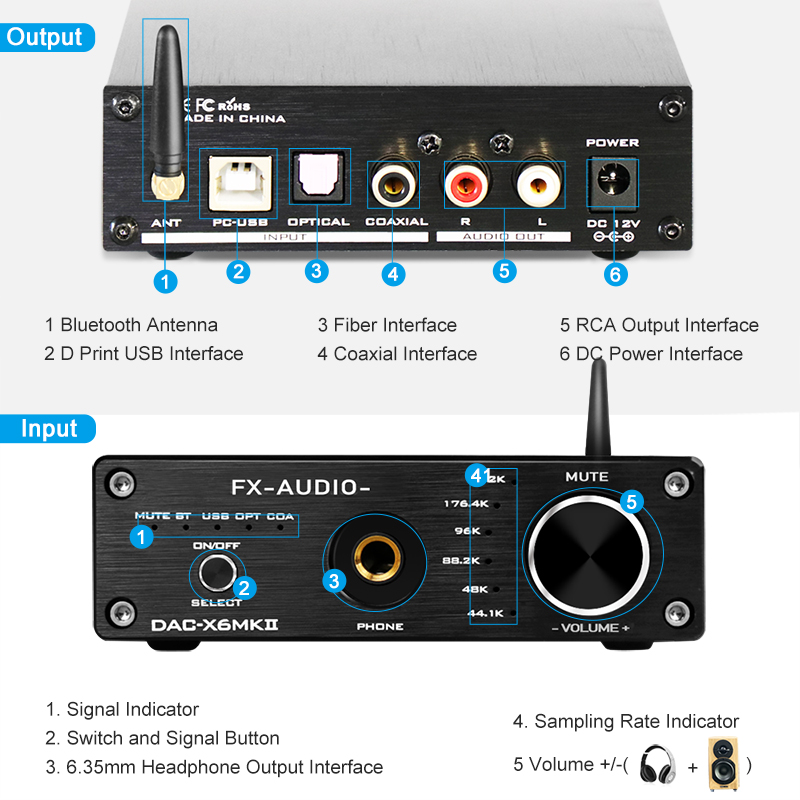

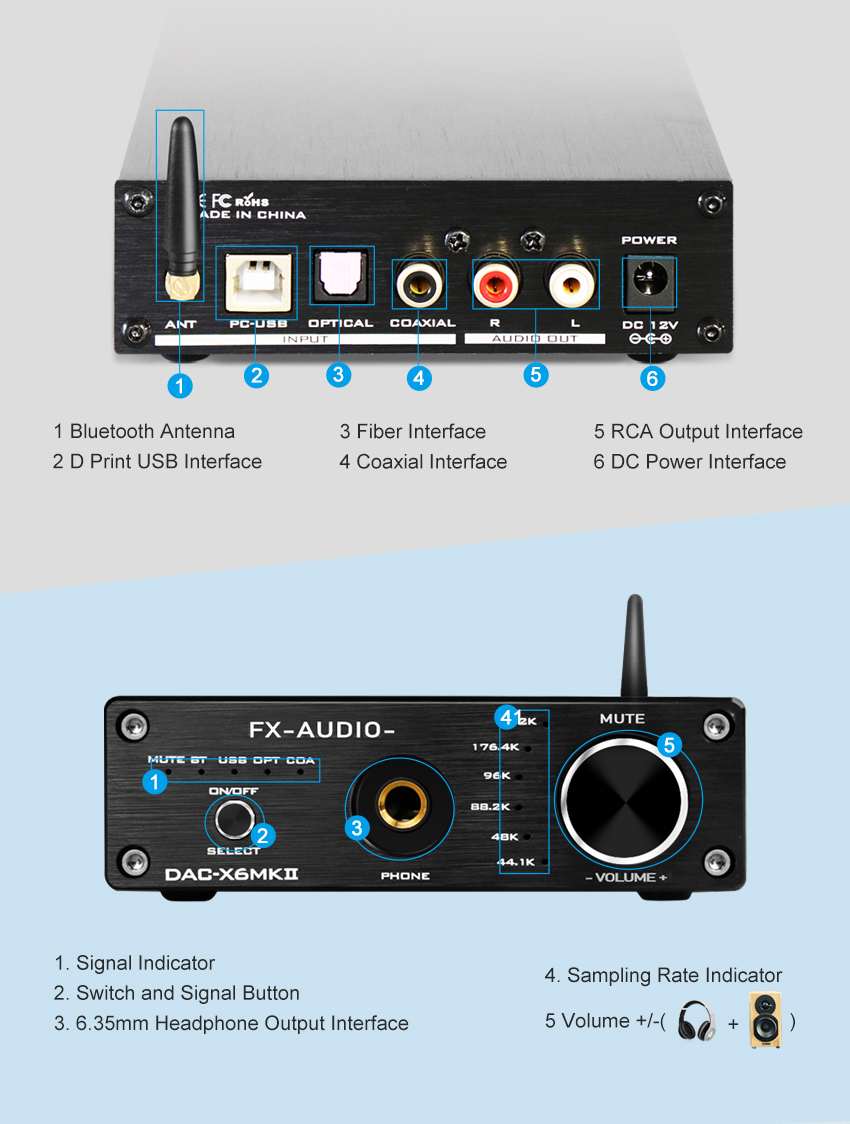

Input: Optical, PC-USB, Coaxial, BT
Output: RCA, 6.35mm Headphone
DC Power Supply: 12V 1A
Unit Size: 4.6 x 7 x 1.4 inch/11.7 x 17.8 x 3.6cm
- Parameters
- Support digital audio conversion to analog audio signals
- 4 Optional Audio Inputs: Optical, Coaxial, PC-USB, Bluetooth
- High performance chipset OCC3008 (Bluetooth 5.0) and decoding chip ESS9018
- Connect 6.35mm jack headphone amplifier and RCA speaker simultaneously
- Connect Bluetooth audio input (phone, tablet, laptop, computer) via Bluetooth
- Volume control knob can control the volume of headphone and speaker
- Aluminum alloy case, black immersion gold, gold-plated interface
- Support sampling rate at 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 24Bit
- Provides Electromagnetic-noise-free transmission and pure sound
Chipset: STM8+CM6642+ESS9018+TPA6120+OP275+OCC3008(Bluetooth 5.0)
Sampling Rate: 24Bit/ 192kHz
RCA RMS Level: 2Vrms
Headphone Power Output: 940mW@16Ω, 900mW@32Ω, 700mW@64Ω, 450mW@120Ω
Headphone THD: 0.006%
Headphone SNR: 112dB
Headphone Frequency Response: +0 / -0.5dB(20Hz-20kHz)
Input: Optical, PC-USB, Coaxial, BT
Output: RCA, 6.35mm Headphone
DC Power Supply: 12V 1A
Unit Size: 4.6 x 7 x 1.4 inch/11.7 x 17.8 x 3.6cm

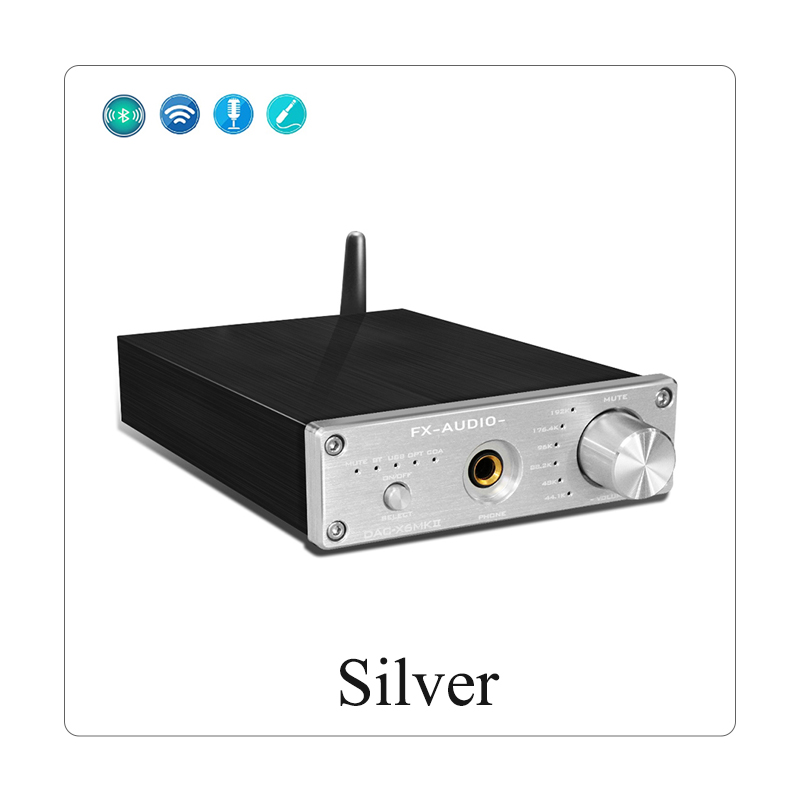

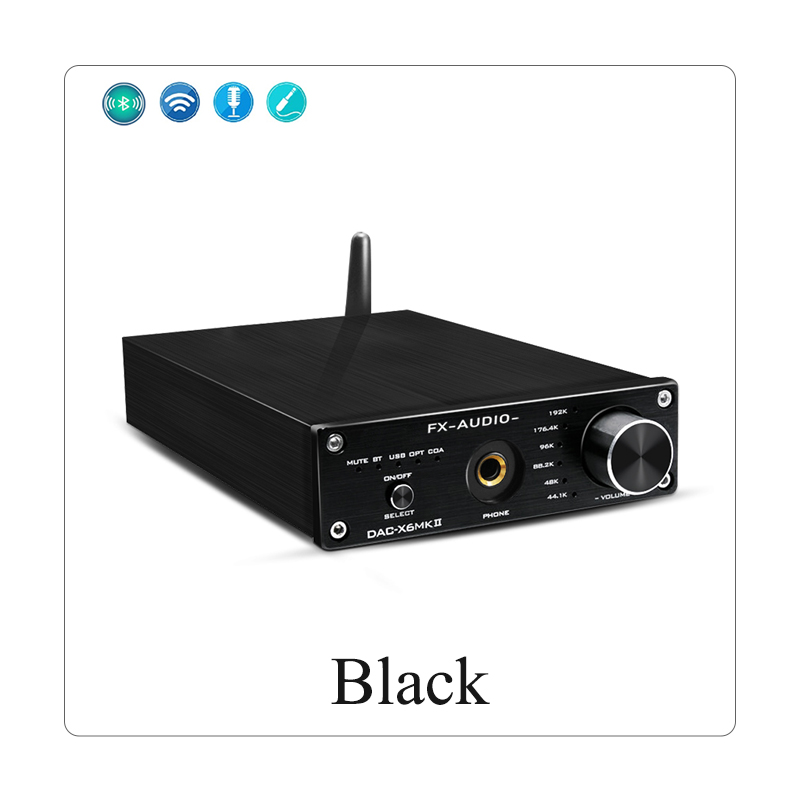

Color
 |  |
