DAC-X6

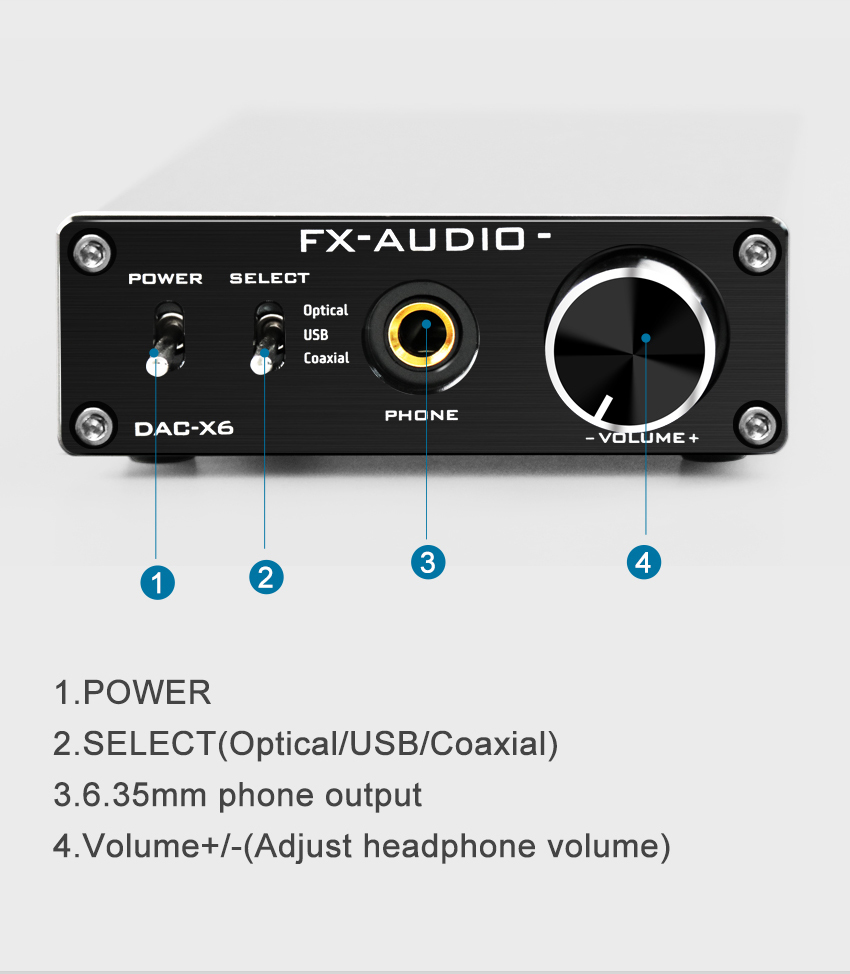

【DAC and Headphone Amplifier Function】 This DAC-X6 is not only an audio dac which transmits digital signal into analog signal, but also a headphone amplifier that drive 6.35mm headphones. The dac audio converter supports 6.35mm headphone and speaker simultaneously. Please note that the volume knob in front panel can only control the headphone’s volume

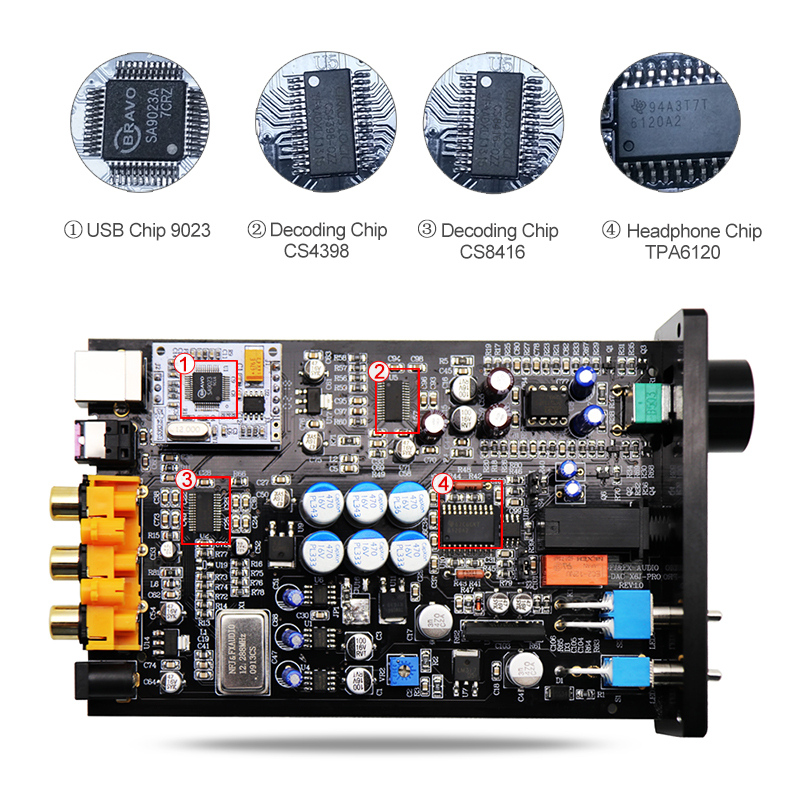

Chipset: SA9023 + TPA6120 + OP275 + CS8416 + CS4398
Sample Rate: Optical/Coaxial-24bit/192KHz, PC-USB-24bit/96KHz
RCA RMS Level: 1.8Vrms
Headphone Power Output: 520mW@16Ω, 450mW@32Ω, 250mW@64Ω, 165mW@120Ω
Headphone THD+N: 0.003%
Headphone SNR: 105dB
Headphone Frequency Response: (+0, -0.5dB)(20Hz～20KHz)
Interface Input: PC-USB, Optical, Coaxial
Interface Output: RCA, 6.35mm Headphone
DC Power Supply: 12V 1A

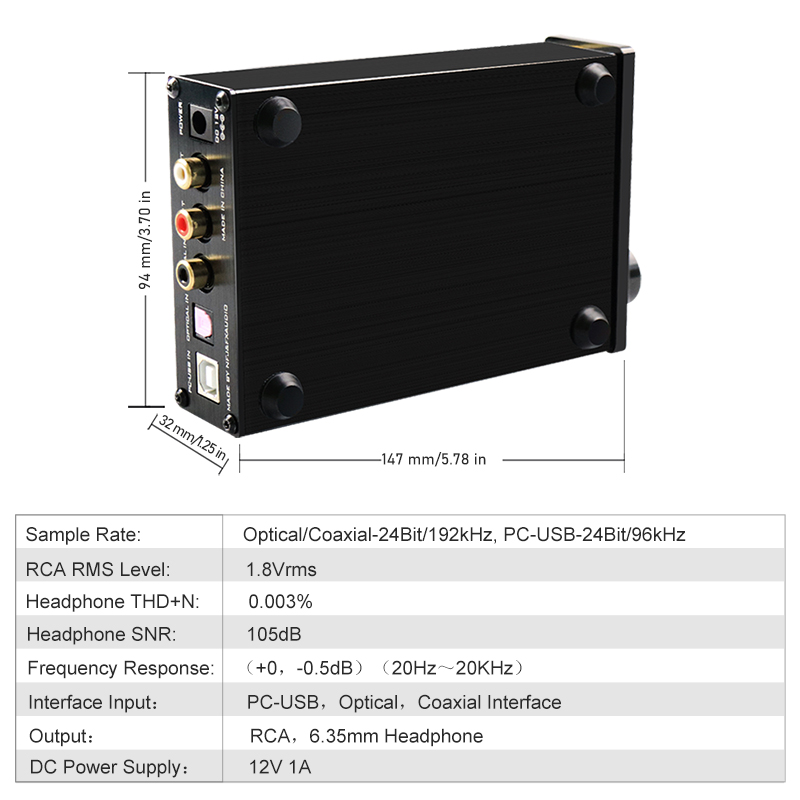

Unit Size: 14.8X9.5X3.0 cm
- 产品参数
【DAC and Headphone Amplifier Function】 This DAC-X6 is not only an audio dac which transmits digital signal into analog signal, but also a headphone amplifier that drive 6.35mm headphones. The dac audio converter supports 6.35mm headphone and speaker simultaneously. Please note that the volume knob in front panel can only control the headphone’s volume
Chipset: SA9023 + TPA6120 + OP275 + CS8416 + CS4398
Sample Rate: Optical/Coaxial-24bit/192KHz, PC-USB-24bit/96KHz
RCA RMS Level: 1.8Vrms
Headphone Power Output: 520mW@16Ω, 450mW@32Ω, 250mW@64Ω, 165mW@120Ω
Headphone THD+N: 0.003%
Headphone SNR: 105dB
Headphone Frequency Response: (+0, -0.5dB)(20Hz～20KHz)
Interface Input: PC-USB, Optical, Coaxial
Interface Output: RCA, 6.35mm Headphone
DC Power Supply: 12V 1A
Unit Size: 14.8X9.5X3.0 cm
